How to capture an Execution Plan

Since in the coming weeks I will be presenting a session on Execution plans at a few SQL Saturday events, I thought I would do a post on how to capture execution plans.  Execution plans are a critical tool when attempting to troubleshoot a performance issue.  SQL Server Management Studio is one of the common tools we use to get the plan, if we have the query. You can also use Extended Events and Query Store.

Using SSMS

In SSMS there are two options to capture the execution plan, Actual and Estimated plan. The biggest difference between the two is that the Actual plan needs to execute the query, while the estimated plan uses statistics to create the plan and does not execute the query.

To get the Estimated Execution plan, you can use the Query menu. There you will find the Display Estimated Execution Plan menu item.

There a two ways to get the actual execution plan.  One is on the tool bar and the other is on the Query menu.

When looking to capture the estimated execution plan, as soon as you click on the menu item, the plan will be returned.  If you are looking for the actual execution plan, SQL Server will execute the query and when it is finished the plan will be returned.  For simple queries the estimated execution plan will be returned very fast, however for more complex queries it might take some time.

When in SSMS, how can I tell if the plan is actual or estimated? There are a few ways. The easiest way is to check the number of tabs.  As you can see below there are two tabs, one for messages and another for Execution Plan.  There is a missing table, results.

Estimated Execution Plan:  Two tabs

Actual Execution Plan: Three tabs

Another way to determine if the plan is actual or estimated will require us to dig a little deeper.  We will need to look at the properties of a few of the operators.

When you float the cursor over the Index Scan you will see this popup.  The items in the green boxes are for the actual execution while the items in the red boxes is for estimated execution.  Although having the options for estimated execution, you might think this is for the estimated execution, it is not.

When both estimated and actual number of rows can be found in the pop up, this means that it is an actual execution plan.  If it were an estimated execution plan, you will not see the actual items, as you can see in the image below.

If the estimated and actual plans are captured very close to each other, you will not see much difference.  However, if there are a large period of time between them, there could be a number of differences.

This will work with both an on-prem instance of SQL Server as well as an Azure SQL Database.

Extended Events

Using SSMS works great if we have the query, however it is a manual process.  What if you want to capture the plans after hours or automatically.  This is where Extended Events comes into play.  Just a word of warning, when capturing execution plans with Extended Events, you could actually cause a performance problem so be careful.

This is what Microsoft has placed in the description of the events related to Execution Plans. I think it is a pretty clear warning about using Extended Events to capture Execution plans.

“Using this event can have a significant performance overhead so it should only be used when troubleshooting or monitoring specific problems for brief periods of time.”

When working with an On-Prem instance of SQL Server, Extended Events can be found under “Management”.  This is a server level setting, although you can limit the activity captured to a single database.

The location is slightly different for an Azure SQL Database.  Extended Events can be found under the database.

You can right click on the “Sessions” folder under Extended Events and then click “New Session”.

When creating the session there are three events we will want to consider. These events can be found in both an on-prem instance as well as Azure SQL Database.

query_pre_execution_showplan – this event is the equivalent of an estimated execution plan

query_post_execution_showplan – this event can be used to capture the actual Execution plan.

query_post_compilation_showplan – Occurs after a SQL statement is compiled.

To create an Extended Event session you can either use SQL Server Management Studio by right clicking “Session” under the  Extended Events item or using the CREATE SESSION statement.

If using SSMS graphical tool, you can right click on Sessions and then click “New Session” you will see something similar to this.

Once you give the session a name, the you are ready to move on to picking the proper events.  Remember, there are three options for events, query_pre_execution_showplan and query_post_execution_showplan.

If you enter “showplan” into the Event Library search box.  You will see four events, the three mentioned earlier and a fourth related to Query Store.  We will discuss this one later.

Move the events over by clicking the “>” button and then you are ready to add the target.  Once you do, save the session, start it and you will now be collecting execution plans.

You can also use the CREATE EVENT SESSION statement. The statement below collects all three events, again NOT recommended.  Notice that this statement also has a filter for the AdventureWorks2014 database.  If you do decide to attempt, what even Microsoft says you should use with caution, try to reduce activity by limiting the collection to a single database.

CREATE EVENT SESSION [ExecutionPlan] ON SERVER
ADD EVENT sqlserver.query_post_compilation_showplan,
ADD EVENT sqlserver.query_post_execution_showplan,
ADD EVENT sqlserver.query_pre_execution_showplan(SET collect_database_name=(1)
    ACTION(sqlserver.sql_text)
    WHERE ([database_name]=N’AdventureWorks2014′))
ADD TARGET package0.event_file(SET filename=N’ExecutionPlan’),
ADD TARGET package0.ring_buffer
WITH (MAX_MEMORY=4096 KB,EVENT_RETENTION_MODE=ALLOW_SINGLE_EVENT_LOSS,MAX_DISPATCH_LATENCY=30 SECONDS,MAX_EVENT_SIZE=0 KB,MEMORY_PARTITION_MODE=NONE,TRACK_CAUSALITY=OFF,STARTUP_STATE=ON)
GO

Now that we are collecting the plans all we have to do is right click on the target and then click view data.  You will see something similar to below.  Notice the Query Plan tab highlighted.

If you right click on the plan you will see this context menu.  You can now save the plan, view the XML and even open the SentryOne Plan Explorer, if you have it installed.  If you don’t have it installed…..go get it.  It is a great tool.



Extended Events are a great tool to collect information about what is going on in your server.  As stated several times, if you are looking to Extended Events to collect your execution plans, do so very cautiously.  Also, limit the time the sessions is running and limit the activity to only the database you are looking to find a solution to a performance problem.

Query Store

The last option we will cover is Query Store.  This is a great tool!!!  Query Store came out with SQL Server 2016.  What I like about Query Store is that it allows me to collected the needed execution plans without the overhead of Extended Events.

To enable Query Store, simply go to the properties of the database and select Query Store.  The Operation Mode Property is Off by default. Change this to either Read or Read Write.  Now Query Store is enabled.

Notice that there are two Operation Mode properties.  One is actual and the other is Requested.  If you change Requested to something different than Actual, once you click OK, the requested setting will now become the actual setting.

Per Microsoft, here are a number of scenarios of why you might want to utilize Query Store.

Once you enable it and are collecting data, there are a number of reports that you can use to view the plans. Under that database, in this case, AdventureWorks2014, you will now see an option for Query Store.  When you expand it, you will see the reports that are available to you.

When you right click on one of the reports you will see something similar to this. By clicking on the bar in the chart on the upper left, the other two panels will update.  As you can see, the execution plan is in the bottom panel.

Once you have the plan visible, it works just like all the option methods of collecting the plan.  You can view the properties of each operator as well as save the plan for analysis later.

If you utilize query store, there is an event in Extended Events you might want to consider.  This event is query_store_generate_showplan_failure and will fire when the Query Store has an error creating the plan.

Here is the description from the event:

“Fired when Query Store failed to store a query plan because the showplan generation failed”

This post is about how to collect the Execution Plans, including Query Store.  In this post, I am not going to get indepth about all the options of Query Store.  There is some really great information out there, including some great videos.  Eric Stellato has some great content on Query Store in a number of locations, including SQLSkills.com, SQLPerformance.com and yes, even YouTube.

Query Store on SQLPerformance

There are number of options of collecting Execution plans.  My preference would be to utilize Query Store. Mostly because it captures the plans automatically, has really good reporting and has very low overhead.

Thanks for visiting my blog!!!

Extended Events – Reading Multiple Session Files

Extended Events are a very useful tool when trying to troubleshoot performance issues. When setting up an Extended Event session there are multiple options for the storage of the data.  One of the most common targets for storage is the event_file target.  This type of storage can be used for both an on-prem instance of SQL Server as well as an Azure SQL database.

This post will go over how to read from both locations, on-prem and an Azure storage account.  They are similar, but different enough to cover here. The biggest difference as you will see, is setting everything up properly so you will be able to read multiple files with one TSQL statement.

When setting up a event_file there are a few options that can be set.  Of course the most logical is the path to the location where the files will be placed.  You will also have the opportunity to set the size of the files, maximum number of files as well as whether or not to allow file roll over.

Since you might have more than one file,  you may want to read from multiple files with the same query, that is the focus of this blog post.  Of course in order to read from a file, the file name is important, even if reading from multiple files.  If you look at the image below, you will see that there is a large number attached to the end of the file name.  Just a side note, I like to name the file the same as the Extended Event session name.  This makes it easier to match the files to the session.

According to Microsoft the number at the end of the file name is calculated using the following method:

“The integer value is calculated as the number of milliseconds between January 1, 1601 and the date and time the file is created.”

Reading On-Prem Files

When reading from a event_file target, the fn_xe_file_target_read_file function is used.  The first parameter of this function is the file path, which includes the file name.

Using the two files in the above image as an example, if I want to read from a single file, I would include the full path including the name of the file.

SELECT event_data = CONVERT(xml, event_data)
INTO #eeTable
FROM sys.fn_xe_file_target_read_file(N’C:\temp\ExecutionTImeOut_0_131920765279670000.xel’, null, null, null);

Notice that in order to read from the file, I included the full name of the file.  However, there are two files due to the rollover.  What do I need to do to read from both files in one query?

In order to do this, there is one simple change that needs to be made.  Notice in the code below, the file name has been modified to use the “*” following the name.  The number at the end of the file is no longer needed.

SELECT event_data = CONVERT(xml, event_data)
INTO #eeTable
FROM sys.fn_xe_file_target_read_file(N’C:\temp\ExecutionTImeOut*.xel’, null, null, null);

This will now return the data from all the XEL files in the location specified that start with “ExecutionTimeOut”.

Reading from Azure Storage Account

This works great for an on-prem instance of SQL Server, however there are some changes that must be made when quering the file targets of an Azure SQL database.

Before we get into the change that needs to be made, let’s go over a few prerequisites on using Extended Events for an Azure SQL Database and using an Azure storage account.  This blog will not get very deep into a few of the prerequisites, however they do need to be mentioned.

The first prerequisites is having an Azure Storage account.  When you do this, you will given a few options for the type of storage.  This can be obtained in your Azure portal.  You will need to decide on a few things as well, including what subscription you will use for the storage account and what region it is in.

To create the storage account, simply click the “Storage Account” menu item in the Azure portal.  You will need to fill in all the requested information.

Now that you have provided all the requested information, you can now utilize the storage.  When picking a target type in the Extended Events “wizard”, my preference is the event_file target type.

In order to read the Extended Event files, you will also need to get the EndPoint for the storage account.  As you can see above, you will need to go to the properties of the storage account.  When you do you will then have to capture the Endpoint for the type of storage account you chose.  In this case, the option would be between a file storage account or a Blob storage. Notice that the two Endpoints only have one small difference, right before the word “core”, you will see either File or Blog.  You just need to copy the path to the clip board.  You will need this path when reading the Extended Event files.

The next item you will need is a Shared Access Signature for the storage account. This can be obtained a few different ways.  One is to use the Azure Storage Explorer and the other is to use the Azure portal.

To obtain this signature using the Azure portal navigate to the storage account and then click “Shared account Signature”.  The screen on the right will then be populated with the settings of the signature.  One important setting you want to be aware of is the End option under “Start and Expiry data\time” section.  Make sure you pick the appropriate duration. When this data\time has past you will no longer be able to read the files in the storage account. When you tried to read an Extended Event file and the End date has past, you will not receive an error, you will just see no records returned.

Towards the bottom of the above screen, after you scroll down a bit, you will see a button that looks like the blue button at the top of image below.  When you click that, the SAS token will appear.  This is what we will need to read the Extended Event files.  To capture this, just click the blue button to the right of the box under SAS token.  In the blue box below, you will see two date, these are the start and end date for the token.  When the end date has past the token will no longer work and your queries to read from the files will not return any data.  In addition, you will also not get an error.

We are almost done with the prerequisites. Once you have configured the Extended Event session to use a Storage Account and the session is running, you a ready to read the files.  There is a lot of really good information out there on how to create an Extended Event session..

The last requirement is to create a database scoped credential in your Azure SQL Database.  To do this, you will need to SAS token mentioned about.  However, notice that there is a “?” at the front of it.  This “?” you will need to remove prior to creating the credential.

Although not a requirement, I would also highly recommend that you download the Azure Storage Explorer.  It is a very nice tool that can make our lives much easier when working with storage accounts.

To create the credential, you will use SQL Server Management Studio.  Below you will see the code used to create the credential.  First thing to remember is that you must run this code when connected to your Azure SQL Database.  Notice the path right after the CREATE line.  This is the path to your storage account and must start with HTTPS.  When you read this code, you will find the “SECRET”, this is where you place the SAS token you captured earlier.  Please remember to take the “?” out before executing the code.

CREATE DATABASE SCOPED CREDENTIAL [https://MyStorageAccountName.blob.core.windows.net/eefiles]
  — this name must match the container path, start with https and must not contain a forward slash at the end, in this case, the container is eefiles
WITH IDENTITY=‘SHARED ACCESS SIGNATURE’
  — this is a mandatory string and should not be changed
 , SECRET = ‘sv=2018-03-28&ss=bfqt&srt=sco&sp=rwdlacup&se=2019-07-01T09:53:56Z&st=2019-07-01T01:53:56Z&spr=tldodr43465kadfuJRsCYUmi1OmYywUjw%3D’
   — this is the shared access signature key that you obtained from the portal, this shared access signature has been changes for security reasons
GO

You can run this code querying the  sys.database_credentials view to confirm the credential was actually created.  Make sure to be connected to your Azure SQL Database.

SELECT * FROM sys.database_credentials

Finally we have all the prerequisites done, now we can move on to actually reading the files.

As you can see in the image below, the file names follow the same pattern as an on-prem instance of SQL Server.

Now that we are ready to read the files, one change you will need to make is put the path to your storage account.  The code below will read just from the file hard coded in the path.

SELECT event_data = CONVERT(xml, event_data)
INTO #eeTable
FROM sys.fn_xe_file_target_read_file(
    ‘https://MyStorageAccountName.blob.core.windows.net/eefiles/efiles_0_132044728780700000.xel’,
                null, null, null
            );;

However, we need to read from all the files.  When reading multiple files with an on-prem instance of SQL Server, we simply removed the number at the end of the file name and replaced it will an “*”.  Logic would say that should work when reading from an Azure Storage account, but it doesn’t work.  You will not get an error either. It will just not return any rows.

This will work, but will not generate an error either, just no rows.

‘https://MyStorageAccountName.blob.core.windows.net/eefiles/efiles*.xel’,

The only change we need to make to the above code, is remove the numbers at the end of the file.  Make sure to include the front part of the name and remove the file extension as well.

‘https://MyStorageAccountName.blob.core.windows.net/eefiles/efiles’,

Now, you can read from all the files with one query.  However, you need to make sure you are not pulling too much data, it could time out.  As it has for me a few times.

Using SSMS Menu items

Another way to read from multiple target files is inside SSMS.  However, it only works for an on-prem instance of SQL Server.  On the File menu, Open you will then see a pop out menu with “Merge Extended Event Files…” item.

When you click, you will have the option to navigate to the location of the files you wish to merge and display the data.  You will see the form like the one below.

You will then click the Add button and select the desired files.  You can use Control+ click to select more than one file.  Once you do, the files will be listed and you just click OK for the data to be displayed in SSMS.  Remember, this does not work for an Azure SQL Database.

The files don’t have to be from the same session to merge them, although many times they will be.  As you can see below there are files from two different sessions, the deadlock session and the ExecutionTimeout session.

Once the data is merged and displayed in SSMS, you can group the data by event. This can be done by right clicking on the column in the top half of the results and going to “Group by this column”.  The results will then look similar to the image below.  Notice that the top four rows are from the Deadlock session, while the bottom row, the Attention event, is from the QueryTimeout session.



Additional Code to Read the XML Data

While this post is about how to read mulitple files, I also want to include the code to parse through the resulting XML from the above code.  If you look, the above code simply takes the data and converts it to XML.  While the code below will parse the XML into a more readable format. You will need to make a few changes.  You will need to use your path to your storage account and you will need to update the columns you want to extract from the XML.

If you look at the code below, there are three steps.  Well actually only two, the middle step is optional.

–Extract the XML

SELECT event_data = convert(xml, event_data)
INTO #eeTable
 FROM sys.fn_xe_file_target_read_file(
                — Fill in Storage Account name, and the associated Container name.
                ‘https://Mystorageaccount.blob.core.windows.net/eefiles/efiles’,
                null, null, null
            );;
–SELECT statement just to confirm there are rows, this is not needed
SELECT * FROM #eeTable
–Parse the XML and put it into the temporary table
SELECT
  ts  = event_data.value(N'(event/@timestamp)[1]’, N’datetime’),
  [sql]  = event_data.value(N'(event/action[@name=”sql_text”]/value)[1]’, N’nvarchar(max)’),
  duration  = event_data.value(N'(event/data[@name=”duration”]/value)[1]’, N’nvarchar(max)’),
  spid  = event_data.value(N'(event/action[@name=”session_id”]/value)[1]’, N’int’),
  user_nm = event_data.value(N'(event/action[@name=”username”]/value)[1]’, N’nvarchar(max)’),
  dbname = event_data.value(N'(event/action[@name=”database_name”]/value)[1]’, N’nvarchar(max)’),
  explan  = event_data.value(N'(event/data[@name=”showplan_xml”]/value)[1]’, N’nvarchar(max)’)
FROM #eeTable
ORDER BY ts
DROP TABLE #eeTable



You can get the column names from the Extended Events GUI.  When you are looking at the Action tab, you would use ‘event\action’.  When you want to pull a column in the “event fields” table.  Something to remember, if you misspell a column name, you will not get an error when you run the query.  The column will just be NULL for every row.

Here is an example of where to get the Action column names. Notice that they can be found on the Global Fields(Actions) table.

Below is an example of the “Data” fields.  Notice that the “Event Fields” tab is that active tab.

Now you can read from multiple Extended Event files with a single statement.  This will allow you to take the results, dump the data into a temporary table and then use T-SQL to find the data you are looking for.

Thank you for visiting my blog!!!!

Azure Budgets

Finances are always a source of contention when they are not going well.  In many homes, finances can be a stress point for the family.  However, if you had a budget and were notified when we got closer to the limit, I think life might be a lot easier.  Fortunately Microsoft has added the ability to create and use budgets in your Azure environment.  Although almost everything I blog about is related to SQL Server, budgets are not just for SQL Server Azure services, it is for your entire Azure subscription.

This blog isn’t going to be about how Microsoft bills Azure customers or what type of activity can increase your bill.  Nothing in life is free, if you follow the simple rule that everything we do in Azure has a cost, although sometimes a very small cost, it might be a bit easier to manage the costs.  One thing to remember is that a budget is subscription based and it’s related resources.

It just takes a few clicks to get to the budget part of the portal.  The first click on “Cost Management + Billing” in the menu on the left side of the portal.

At this point, there are several different paths you can take to get to the next step. For the purposes for this post, we will just go one path.  Select Overview and the click the Subscription you wish to set the budget on.

The last step to get to the Budget area is to click the “Budgets” item. Now you are ready to start the process of setting up the budgets.

When you are looking to set up a budget, there are few questions you should have an answer to, prior to creating it.

        • What will be the maximum for the budget?
        • What will happen when I reach the limit?
        • Do I want incremental warnings? If so, who should be the alerts?
          • Maybe an email at 80% of budget
          • Text message at 100% of budget
        • When will the budget start and when will it end?
        • How often will the budget be reset?
          • Monthly
          • Quarterly
          • Yearly

Once you have an idea of what the answers to the above questions might be, you are ready to proceed with creating the budget.

To demo the creation of a budget, I will use these answers to the above questions.

        • What will be the maximum for the budget? – $5,000
        • What will happen when I reach the limit? – Text message and email
        • Do I want incremental warnings? If so, who should be the alerts?
          • Maybe an email at 80% of budget – yes, email at 80%
          • Text message at 100% of budget – yes
        • When will the budget start and when will it end? – When the budget is configured and will expire on June 6, 2021.
        • How often will the budget be reset? – Quarterly

Now to implement the budget in Azure.

What will be the maximum for the budget? – 5,000

This first thing that needs to be created is the budget itself.  Once you clicked the budget menu item as mentioned earlier, you then will need to click the “Add” link.  By clicking this, you will then be taken to the form that will allow you to enter all the necessary information for the budget.

The blue arrow above points to the subscription that will define the scope of the budget.  Remember, the budget is set for the subscription and covers all the costs associated with that subscription.

Once you click the “Add” link you will then see something similar to the image below.



Of course the name is important, I prefer to give the budget a name that it be somewhat descriptive.

Then you must enter an amount.  In order to do this properly, you will also need to identify when the amount will be reset to zero.

Based on the earlier answers, the amount will be $5,000.  Once you have the amount entered as you see below, now you need to determine how often you would like it to reset.

As you can see in the image above, there is a “Reset” option.  This is where you will determine the reset interval. You have multiple options for this settings.

          • Billing Month
          • Billing Quarter
          • Billing year
          • Monthly
          • Quarterly
          • Annually

When you pick on option, the next set of options will change, based on the option you pick. The order of the options is pretty straight forward, starting from the left, Year, Month and day. Notice below all three of which are not active, that is due to the option for renew you picked, I this case “Billing Monthly”.

Below are the Reset options and the impact of the Year\Month\Day options.  These images were created on the 8th of the month.  The day changed based on that.

          • Billing Month
          • Billing Quarter – notice the year and month are available to change
          • Billing year
          • Monthly – the day changed to the first, unlike the above images that set the day to the day before.
          • Quarterly
          • Annually

Now that we have set a starting date, we also need to set the Expiration Date.  This is the date you no longer what the budget to be in effect.

The next configuration setting we must address is what level of the budget will trigger an alert.  For example, if our budget for the subscription is $5,000 and we want to get an email at 80% utilization, or $400.  The budget amount, black box below, is a calculation of the amount, red box and the percent of budget, yellow box.  In this case, 80% of 5,000 is $4000.

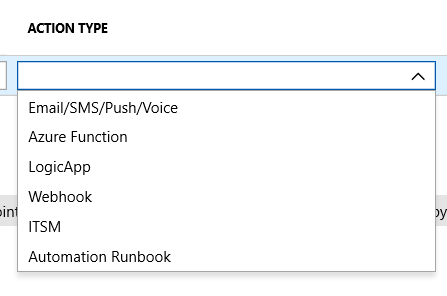

Action Group

Now that we have set up the basics, we now need to determine what will happen when the Alert Condition is met.  Action Groups will help us out here.

When you are setting up the alert, you will have to click the drop down box under that Action Group header.  If no Action Groups exist you will only see None. However, in this case, there is an action group, so we see that as well.

Creating an Action Group

An essential component for setting up a response to a threshold being met. If you need to create an Action Group, you will need to click the “Manage Action Groups” in the upper left, just under the “Create Budget” header.



If you are trying to add an Action Group to an existing budget you can do so by clicking “Monitor” on the menu list on the left side of the Azure portal.

Regardless of how you get to the form to add a new Action Group, You will then be asked to complete a few basic settings.  These include, group name, a short name, Subscription and what resource group you would like to add it to.

You will need to give the Action a name.  Hopefully something descriptive.

Once you do, now it is time to pick the Action type.  You can see what types are available, click the drop down under the Action Type header.

While there are a number of options we will focus on the email\sms option.  If you look back at the requirements outlined earlier, you might remember that we wanted an email at 80% and a text message at 100%.

Types

Email – This obviously an email address you would like the alert to be sent to. Per Microsoft there is a limit of No more than 100 emails in an hour

SMS – This is a text message and you will need to provide a valid number to be sent to.  While the limit of emails was 100 per hour, the limit for SMS is no more than 1 SMS every 5 minutes or 12 an hour

Push – This will send a notification to the Azure app.  For more information about the app, please go here

Voice –  This will send a voice call to the number you have indicated. There is also a limit with this type as well, no more than 1 Voice call every 5 minutes

Here is the link to the limit page in the Microsoft documentation.

Filling in the information that is needed for the alert is pretty simple.  All you need to do if fill out the type you would like to utilize. For example, if you would like the action to only send an email, then you would enter an email address just under the work “Email”.

You can easily see the location for the options that we are considering.  These options include, Email, Voice, SMS and Azure App push notification.

In order to meet the requirement for notification, we will need two Actions.  One to send the email at 80% and one to send an SMS alert at 100%.  They will look something like the image below.

Summary form and Adding to a Dashboard

Once you have everything set, you can review the budget configuration.  if you look at the bread crumbs across the top, the path to this summary is easily identified.

Home –Cost Mangement + Billing -Overview –Subscription name — click on budget



When looking at the summary form, you will also see the progress chart similar to the one below.

If you like the Pin in the upper right corner of the graph, you will be able to pin the graph to a dashboard.

Below is similar to what you might see once the budget is added to the dashboard.  I find it very useful to have the budget easily seen.  By placing it on a Dashboard, this makes what could be a difficult task, managing the budget.  And gives us a nice tool to easily review current status.





Creating and utilizing a budget is essential to managing the over cost of your Azure environment.  Hopefully, this will help you take a small step in the right direction.

Thanks for visiting my blog!!

Extended Events File Target – File Rollover and Max File Size settings

Extended Events has a number of options for the storage of the events.  These include Ring_buffer, pair_matching, event_file and several others.  As expected, each of these have different options for configuration.  This post is about the event_file target.  As a side note, Extended Event sessions will have only one target, it is possible to have more than one.  The System_Health session does have two, event_file and ring_buffer.

Below you will find a screenshot of the options for the event_file target.  These are the same type of options we have had in Profiler for many years.

File name just identifies what the file name will start with.  As you can see in the image below, SQL Server adds a large number to the file name.  This number represents the number as defined below.

“The integer value is calculated as the number of milliseconds between January 1, 1601 and the date and time the file is created.”

The other options are pretty straight forward. The Maximum file size has two option, MB and GB.

If I only have a few sessions, I could easily go and look at each session.  However, what if I have a large number of sessions and I want to review these settings for all sessions.  It would be nice to be able to pull this information out of the database using T-SQL.

When using Extended Events, there are a number of DMVs that can help us gather information about the sessions that exist on the server. If you do a Google search on “DMV Extended Events” you will get a number of links that point to one of the views in the list below.  Notice that they all start with “dm_ex_”.  These are very useful views, however the data we are looking for can not be found in any of these.

To get this information we need to look in a different set of views.  These views start with “server_event” for an on-prem instance and “database_event” for an Azure SQL database.  Below is a list of this set of views.

To get the information we are looking for we need to use two of these, server_event_session_fields and server_event_sessions.  We will need to join these two views on the event_session_id column in both views.  If you look at the image below, you will notice that SQL Server stores the values as a row in the view rather than a column for each option.  Even though the GUI offers us two options for the maximum file size, MB and GB, the actual value is stored in MB.

For the maximum file size and the maximum rollover files, you will not see them in these views unless they are changed from the default. If you look at the image below there is one of the options missing, maximum rollover files.  This is because it is set to the default value of 5.

Just a little note about the max_rollover_files option.  This has a default of 5, as stated earlier, however if you see that it has a value of 0, then the “Enable File Rollover” is set to false.  As in the image below.  If you are wondering why all the options are not active, this is because the target has already been created.

To get the defaults we need to run the query below.

SELECT    name
  , object_name
  , type_name
  , column_value
  , description
FROM sys.dm_xe_object_columns
WHERE object_name = ‘event_file’

When you run the above query, your result set will look like what is below.  Notice the Max File Size and Max Number of files.

To get the data we are looking for we need to use the query below.

SELECT
 s.name,
 f.name,
 f.value
FROM
 sys.server_event_session_fields AS f
INNER JOIN
 sys.server_event_sessions AS s
ON
 f.event_session_id = s.event_session_id
WHERE f.name IN (‘filename’ ,‘max_file_size’,‘max_rollover_files’
  , ‘filename’)
ORDER BY s.name

I have taken above code and used the PIVOT to hopefully make the results more readable.  This code also takes into account the default values, that as you may remember is in a different location.



Here is the complete code for an on-prem instance of SQL Server, including the PIVOT.

DECLARE @cols      AS NVARCHAR(MAX)
DECLARE @query  AS NVARCHAR(MAX);
CREATE TABLE #EEOptions
  ( OptionName  sql_variant,
    Filename   sql_variant,
    MaxFileSize  sql_variant,
    MaxRolloverFiles sql_variant)

SET @cols = STUFF((SELECT DISTINCT ‘,’ + QUOTENAME
       name)
      FROM  sys.server_event_session_fields
      WHERE name IN (‘filename’ ,‘max_file_size’,‘max_rollover_files’
        , ‘filename’)
            FOR XML PATH(), TYPE
            ).value(‘.’, ‘NVARCHAR(MAX)’)
        ,1,1,)


SET @query = ‘Insert #EEoptions SELECT SessionName AS ”OptionName”, ‘ + @cols + ‘ from
            (
            SELECT
 s.name AS ”SessionName”,
 f.name as ”OptionName2”,
 f.value
FROM
 sys.server_event_session_fields AS f
INNER JOIN
 sys.server_event_sessions AS s
ON
 f.event_session_id= s.event_session_id
WHERE f.name IN (”filename” ,”max_file_size”,”max_rollover_files”
  , ”filename”)

           ) x
            pivot
            (
                  Max(value)
FOR OptionName2 IN  (‘ + @cols + ‘)
            ) p ‘


EXECUTE(@query)
SELECT OptionName
  , Filename
  , ISNULL(MaxFileSize, 1024) AS ‘MaxFileSize’
  , ISNULL(MaxRolloverFiles, 5) AS ‘MaxRolloverFiles’
FROM #EEOptions
DROP TABLE #EEOptions
This code will not work for an Azure SQL Database.  I will hopefully complete a post on how to do this in Azure.  One thing I can mention is that the properties are slightly different. Notice that the Maximum files size still an option, however Maximum Rollover files is not.
Thanks for taking the time to read my blog.  It is always appreciated.

Pending Restart for Authentication Type Change

In a previous post, I talked about how to determine if your SQL Server needs a restart(click here to read it).  In that post I talk about how to use the configurations view to determine if a restart is needed.  This just looks at the running vs configured values of the configuration settings. After talking about this with a co-worker, he had a very interesting question.

What about the server settings that are not in the configuration view?

Some server level settings, when changed require a reboot to take effect.  For example, if you change the Authentication type, a restart of the SQL Server service is needed for the change to take effect.

You will see this pop up box when you change a server property and a restart is needed.

In order to determine if a restart is needed, we need to look at two places, the registry and a ServerProperty.  There are a number of Server Properties. Because this post is about the Authentication type, the property we are looking for is “IsIntegratedSecurityOnly

When you change the value of the Authentication type in SQL Server Management Studio, it actually only changes it in the registry.  For the Server Property to change and match the registry, a restart of the SQL Server service is needed.

The code below can be used to completed the comparison. It looks at both places and completes the comparison.

USE MASTER
GO
DECLARE @authmodeServerProp TINYINT = 0
DECLARE @Restart            VARCHAR(100)
SELECT  @authmodeServerProp = CASE SERVERPROPERTY(‘IsIntegratedSecurityOnly’)
            WHEN 0 THEN 2  –Set to Mixed, Windows and SQL authentication
            WHEN 1 THEN –Set to Windows Only
END
DECLARE @AuthMode INT = NULL
EXEC xp_instance_regread N’HKEY_LOCAL_MACHINE’,
                         N’Software\Microsoft\MSSQLServer\MSSQLServer’,
                         N’LoginMode’, @AuthMode OUTPUT,
       N’no_output’
IF @authmodeServerProp = @AuthMode
 BEGIN
  SELECT @Restart = ‘No pending restart of the service due ‘ +
       ‘a change in the Authenication Mode.’
 END
ELSE
  BEGIN
   SELECT @Restart =‘The Authentication Mode has changed, look into ‘ +
                 ‘restarting the service’
  END
  SELECT    CASE @authmodeServerProp
      WHEN  1 THEN ‘Windows Only’
      WHEN  2 THEN ‘Windows and SQL Authentication’
      ELSE  ‘Something when wrong’ END AS ‘ServerProperty’
    , CASE @authmode
      WHEN  1 THEN ‘Windows Only Authentication’
      WHEN  2 THEN ‘Mixed Authentication’
      ELSE ‘There was a problem’ END AS ‘Registry value’
    , @Restart   AS ‘RestartNeeded?



The code above simply looks into the registry and the Server Properties.  If they do not match, then a restart of the service is needed.  One thing to notice, the server property works with values of 0 and 1, while the registry works with values of 1 and 2.  That is why the code changes the 0 and 1’s of the server property to a 1 or a 2.

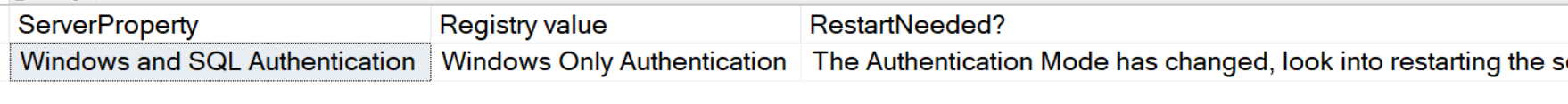

When you run the above code, you will have a data set similar to the one below.  The first two columns return the current value of each of the locations.  While the last column will tells us of the a restart is needed.

This will be added to my “How to complete a Server Assessment” SQL Saturday presentation.

Thanks for stopping by my blog.
